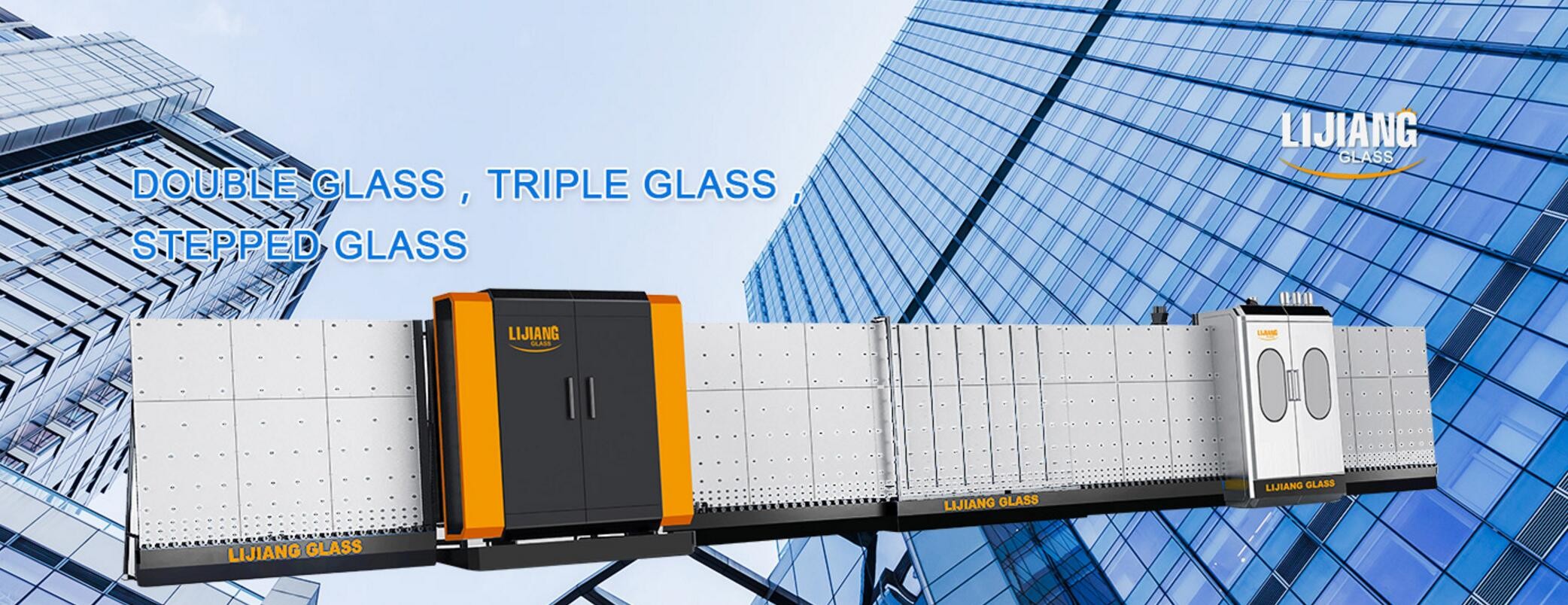

Servo Control Modular superposition Insulating Glass Machine

Vertical Insulating Glass Production Line LJBZ25Using servo to control system, modular function, superposition function

Vertical Insulating Glass Production Line LJBZ2535G

Main Features:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

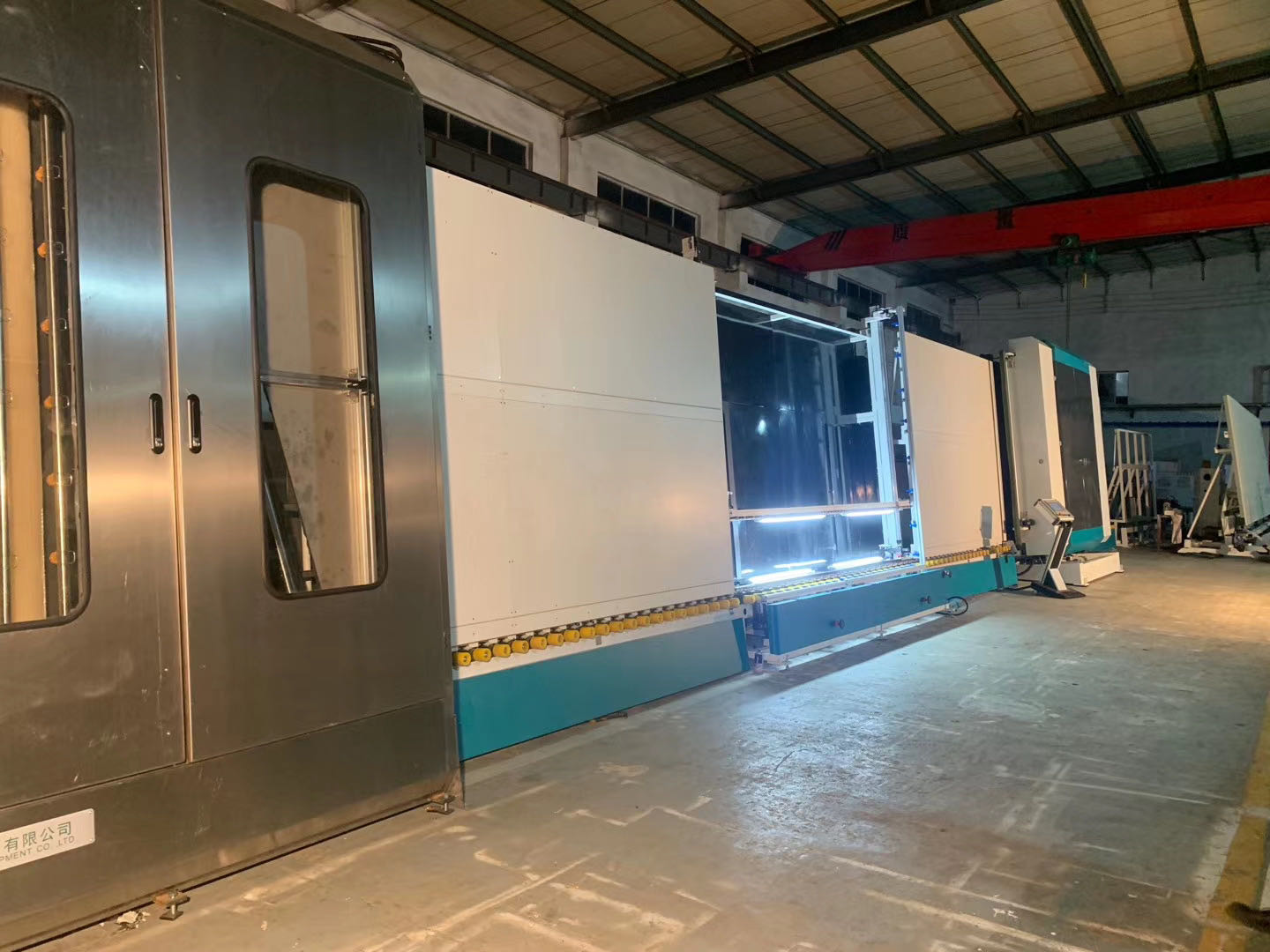

Pressing and filling gas parts

Main feature:

• Ultra-long insulating glass can be compressed with second times

• The machine adopts servo torque to pressing glass

• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet

• Equipped with a precisely adjustable front platen mechanism

• The system can diagnose fault information

• The pressing plate can be opened to 400mm width for easy maintenance

• Applicable to produce four-side step IG, triple IG and shaped IG

• Filling argon gas automatically

• Automatically filling argon gas inside the pressing plate with precise gas concentration

• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)

• No need to drill holes in spacer frame

• Standard gas is Argon gas

• Fast reacting sensor for permanent control of gas filling process

• Automatically set gas data and display data on the screen

echnical data

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and

development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail,

the transportation is very convenient.

The company is committed to building high-end insulating glass machinery and equipment by

learning from famous experts, establishing the research and development centers, cooperating

with domestic and foreign well-known enterprises, importing advanced technology and so on.

Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing

Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the

establishment of the company, our products have been exported to Europe, America, South

America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same

time, our company worked with the well-known domestic research institutes, such as the North

China Industrial Group, Shandong University and others, to constantly improve the level of technical

research. So far, we have independently produced the vertical automatic IG production line with filling

gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant

filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached

the highest leading level in China.

With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you

for win-win situation and jointly creating a new world.
