Brand Name : LIJIANG
Model Number : LJZW2020
Certification : CE
Place of Origin : CHINA
MOQ : 1 Set
Price : USD 20000.00 - 25000.00
Payment Terms : L/C, T/T
Supply Ability : 10 Sets per month
Delivery Time : 20 work days
Product name : Automatic Spacer Bending Machine
Type : LJZW2020
Max. bending size : 2000mm*2000mm
Min. bending size : 250mm*200mm
Aluminum spacer width : 5.5-27mm
Dimensional error : ±0.5mm
Angle error : ±1º
Automatic spacer bending machine of different bending tools for different sizes of spacers
Automatic spacer bending machine is a special equipment for making aluminum frames of
insulating glass, which replaces the traditional fabrication technology. This equipment can
make a variety of convex polygonal aluminum frames by one aluminum strip in one time,
thus strengthening the strength of the aluminum frame, making the sealing effect of the
insulating glass more better.
Adopt Siemens PLC control system
There are 4 Siemens servo
Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens
servo to change different racks.
Automatically cut and feed aluminum spacers
Bend shaped spacer frames continuously
(1)Trough: The four storage troughs can save one to four types of aluminum spacers with the
same width or different widths, supplying for automatic access when the equipment is operating.
The four troughs can be freely in switching the position;
(2) Charging platform: the charging platform will provide operators with an operating platform to
add materials to the trough;
(3) Automatic feeding system: when the equipment is in operation, automatic feeding system
will convey the aluminum spacer to the ready position; in the process of bending, if the aluminum
spacer used for bending has reached the end, then automatic feeding system will complete the
following actions of the aluminum spacer to ensure the continuity of bending work and realize
the function of no tailing;
(4) Trough-changing mechanism: if the aluminum strips in the pre-trough are done, then it is
available to operate material-changing system to change into the trough with materials.
(5) Foot switch of trough changing: it is used to open the locked device, and operate trough-
changing mechanism.
Automatic drill gas filling hole (Optional)
Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and
stainless steel ( Optional) and so on.

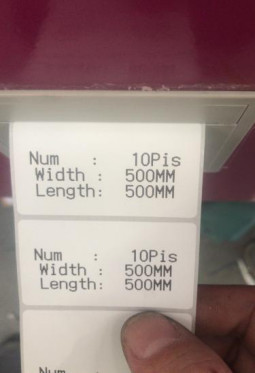

Printing paper label sticker function (Optional),could remove it easily.
Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
Min.bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | ≤26s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
NAME | BRAND | NAME | BRAND |
PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
![]() |
